Material: NiCo
and PdNi alloy
Thickness: ≦ 600 µm
Uniformity: ± 1.5% of Thickness
Substrate: 4” and 6” available
Low Stress
No Pinhole
No Nodule
MBT applies micro-electroforming technique, one of the
sequence of Laser-LIGA process steps, on the cost effective
production of micro-stampers. MBT’s miniatured micro-stamper
is able to satisfy the ultra-high precision requirement
of micro-injection, the final step of Laser-LIGA process.
Besides, the micro-stamper product can be replicated rapidly
for the volume manufacture need and itself a proven high
quality metal (or alloy) microstructure product.

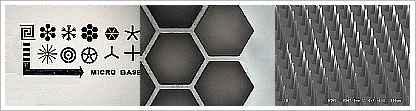

Examples
Include:
Medical – Micro-fluidic devices, Micro-sprayers (Metal
mesh) and Micro pumps.
Micro Mechanism – Micro-motor and Micro-gear. |
|
