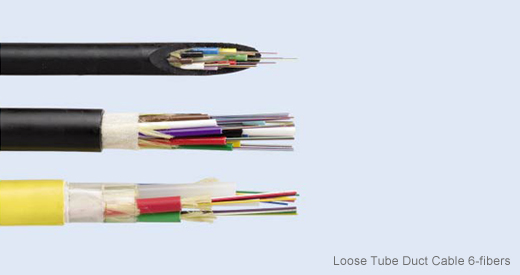

 Loose Tube Duct Cable
6-fibers |
|
 Descriptions |
|
| Application |
Duct |

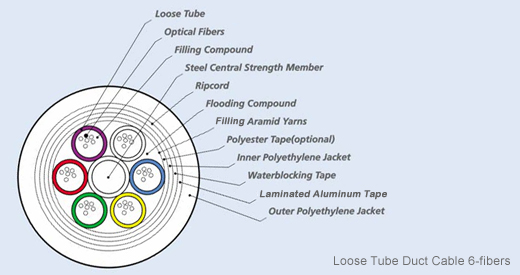

| Construction |
Steel Central Strength Member with Sheath (excluding Optional) |
| Fiber Count |
6~63 |
| Ouside Diameter (mm) |
14.0 |
| Unit Weight (kg/km) |
130 |
| Total No. of Loose Tube |
1~6 |
| Max. No. Fibers per Tube |
6 |
| Max. Tensile Load |
3000N |
| Min. Bend Radius |
Loaded(mm) |
280 |
| Unloaded(mm) |
140 |
| Temperature Range |
Operation |
-40~+70℃ |
| Storage |
-40~+70℃ |
| Installation |
-30~+60℃ |
|
|
| Specifications |
|
| Application |
Duct |
| Construction |
Steel Central Strength Member with Sheath (excluding Optional) |
| Fiber Count |
6~63 |
| Ouside Diameter (mm) |
14.0 |
| Unit Weight (kg/km) |
130 |
| Total No. of Loose Tube |
1~6 |
| Max. No. Fibers per Tube |
6 |
| Max. Tensile Load |
3000N |
| Min. Bend Radius |
Loaded(mm) |
280 |
| Unloaded(mm) |
140 |
| Temperature Range |
Operation |
-40~+70℃ |
| Storage |
-40~+70℃ |
| Installation |
-30~+60℃ |
|
|
|
|
