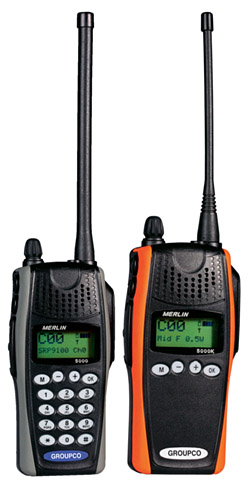

MERLIN 5000 Handheld Radio
Designed for use by professionals where radio communications are indispensable the ,MERLIN is a ruggedised triple mode radio offering guaranteed communications under the most arduous operational conditions. Using the latest DSP technology the radio can operate in either PMR FM mode or MPT trunking mode and a built in modem offers full data transmission capability whilst a plug in option board can convert it to full P25 digital capability.
The unit sits comfortably in the hand and a large LCD screen and intuitive operational software make the unit extremely easy to operate. Most major signaling formats are supported.
Available in a choice of colours the radio has a multipurpose accessory interface to provide the widest possible integration capability of 3rd party accessories and add-ons.
Major Features
  • 2400/1200 baud FFSK Singnalling

  • CTCSS and DCS

  • Voting and Scanning

  • Simple Voice Scrambler

  • Extremely flexible Selcall Singnalling

  • DTMF Signalling

  • MPT1327, MPT1343 and ANN

  • Choice of 1800 or 3,000 mAh battery

  • 1000 channel capability

  • Full CE and EIA performance compliance

  • Multimode capability ¡V PMR, TMR, P25 conventional & P25 trunked
    		•
    Specification
    General
    Frequency Range
    (1) 66-88 MHz (2) 136-174 MHz
    (3) 174-208 MHz (4) 208-245 MHz
    (5) 335-395 MHz (6) 400-480 MHz
    (7) 440-500 MHz (8) 440-520MHz
    (9) 470-530 MHz
    Channel Spacing
    12.5, 20, or 25 KHz programmable
    Number of Channels
    Conventional PMR 1000
    MPT 1024
    Antenna Impedance
    50£[
    Modulation
    FM
    Operating Temperature
    -30¢J ~ +60¢J
    Power Supply
    7.2 Volts, Li-ion 1800 mAh or 3000 mAh
    Battery Life
    12 hours, Max. power
    Tx : Rx : STBY = 5 : 5 : 90
    Dimension (mm)
    150(H)x70(W)x50(D)
    Weight
    300g without battery and antenna
    CE Compliance
    EN 300 086 EN 300 113
    EN 300 219 EN 301 489
    High/Low Temp., Humidity,
    Vibration, Salt Fog, Shock,
    Dust, Rain
    MIL-810/C/D/E/F
    Environmental
    IP54
    Frequency Stability
    ¡Ø+/-2.5ppm
    Operating Temperature
    -30¢J ~ +60¢J Operating
    -40¢J ~ +80¢J Storage
    Transmitter
    Output Power
    0.5, 1, 2.5, 4W (UHF) or 5W(VHF)
    2 levels programming
    Audio Distortion
    ¡Õ3% at 1KHz, 60% Deviation
    Audio Frequency Response
    +1dB to -3dB of pre-emphasis
    300 to 3000Hz on 25KHz channel
    300 to 2550Hz on 12.5KHz channel
    Transmit Receiver Time
    ¡Õ25ms
    Hum and Noise
    ¡Ù40dB(12.5KHz)
    ¡Ù45dB(25KHz)
    Spurious Emissions
    ¡Ù70dB
    Receiver
    Sensitivity
    0.25 £gV for 12dB SINAD
    Audio Output
    500mW into 16£[ at ¡Õ5%
    Selectivity
    ¡Ù73dB(25KHz)
    ¡Ù65dB(12.5KHz)
    Intermodulation
    ¡Ù65dB(ETS method)
    ¡Ù70dB(EIA method)
    Audio Frequency Response
    +1dB to -3dB of de-emphasis
    300 to 3000Hz on 25KHz channel
    300 to 2550Hz on 12.5KHz channel
    Blocking
    ¡Ö95dB at +/-1MHz
    Hum and Noise
    ¡Ù40dB(12.5KHz)
    ¡Ù45dB(25KHz)
    Image Rejection
    ¡Ù70dB

      Accessories


    PA-CRG1 Signal Rapid Charge

    BA-BATO 1800 mAh Li-ion Battery
    BA-BATL 3000 mAh Li-ion Battery (Optional)

    Belt Clip

    PA-CRG6 6 Packets Rapid Charger (Optional)



    PA-CLBC Leather case with shoulder Belt (Optional)

    PA-LMCL Remote Speaker Microphone (Optional)

    PA-AHEO VHF Antenna
    PA-AWUW UHF Antenna

    PA-PRLD Programming Lead (Optional)
