AG-12232A |
122x32
dots 1/32 Duty |
| |

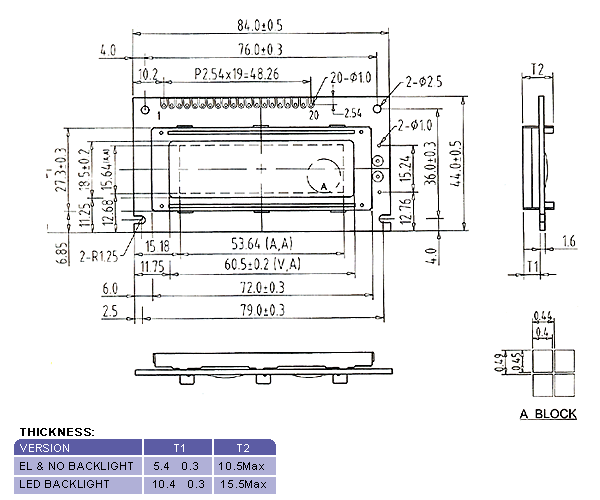

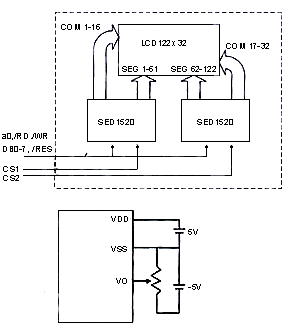

BLOCK DIAGRAM & POWER SUPPLY |
|
|
FEATURE |
|
|
| |
|
1.Construction
: STN/FSTN LCD, Bezel, Zebra and PCB.
2.Optional LED or EL back-light.
3.Controller : SED1520DAA or equivalent.
4.Besides +5V for logic circult, -5V
is needed for LCD
 driving.
(Optional DC/DC Converter)
5.Normal / Extended temperature type. |
|
|
| |
|
ELECTRICAL CHARACTERISTICS |
|
|
| |
|
|
| |
|
INTERFACE |
|
|
| |
|
|
